BABSL1 5 32*44*8 Double Lip Oil Seal CFW High Pressure Oil Seal with NBR Material Type Palantine Cfw

BABSL1 5 32*44*8 Double Lip Oil Seal CFW High Pressure Oil Seal with NBR Material Type Palantine Cfw

1 ....This CFW brand double-lip high-pressure oil seal is made of nitrile rubber (NBR). The specific meaning is as follows:

Model Specifications: BABSL1.5 is the specific model series identifier for CFW oil seals. The 32448 designation indicates the seal dimensions: 32mm inner diameter, 44mm outer diameter, and 8mm thickness.

Double-lip Design: This oil seal utilizes a double-lip structure. The primary lip seals the lubricant and prevents leakage, while the secondary lip acts as a dust barrier, preventing dust and impurities from entering the seal area, thereby better protecting internal components.

Material: Made of nitrile rubber (NBR), this material offers excellent oil resistance and is resistant to common working media such as mineral-based hydraulic fluids. It also possesses moderate wear resistance and moderate hardness. Its operating temperature range is typically around -40°C to 100°C, making it suitable for most general industrial and automotive applications.

High-Pressure Characteristics: As a high-pressure oil seal, it can withstand a certain amount of pressure and is suitable for applications requiring the sealing of high-pressure fluids, such as hydraulic systems. In hydraulic pumps, hydraulic motors, and other equipment, it effectively prevents high-pressure oil leakage, ensuring system operation.

Brand: CFW is a renowned oil seal brand under the German Freudenberg Group. It enjoys a high reputation and widespread application in sealing technology, ensuring high product quality and performance.

1. Features: Elastomer seal outer edge, short, soft, and flexible sealing lip with dust lip.
2. Material: Nitrile rubber, code 72NBR902.
3. Color: Blue
Application Conditions:
1. Media: Mineral oils, synthetic oils
2. Temperature (°C): -40°C to 100°C
3. Advantages: Suitable for use in hydraulic components with pressurized working media. The seal between the seal outer edge and the seat bore is reliable, even with high surface roughness, thermal expansion, or split cavities. It offers advantages when sealing low-viscosity and gaseous media. A dust lip is included to prevent general and moderate dust contamination and external intrusion (BAUM4SLX7 model).
4. For synthetic oils (polyalkylene glycols/polyolefins), the maximum operating temperature must not exceed 80°C (if using only NBR).

 2 ....Packaging & Delivery

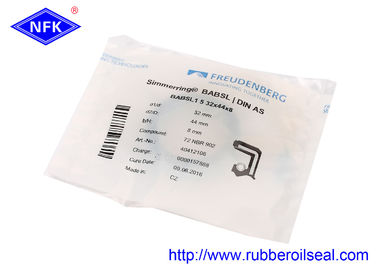

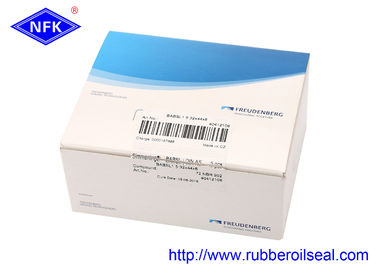

Packaging Details : The original factory packaging

Dellvery Time :



Quantity(Pieces)	in stock	if goods out of stock Urgent shipment air freight	if goods out of stock, the new order
Dellvery Time(days)	1-2 day	7-15 days	To be negotiated



Payment Term Way by delivery:

•
•



• Way by delivery: We can arrange the shipping by Sea,air express,DHL ,EMS, FADEX,TNT.
• Payment Term : Western Union, Cash, Bank, PayPal.HSBC,CITY BANK.



3 ....Product characteristics

​1. Speed = >Mechanical movement speed is high, the lubriion oil film may be destroyed, because of not good lubriion and friction heating oil seal, cause life is greatly reduced, we use polyurethane or rubber oil seal at 0.03 m/s ~ 0.8 m/s speed within the scope of work is good

2. The temperature= > Low temperature will lower the elasticity of polyurethane or rubber seal, cause leaks, and even the entire oil seal becomes hard and brittle. High temperature can make oil seal volume expansion, soft, cause movement oil seal friction resistance increase rapidly and reduce the compression capacity. Suggest polyurethane or rubber oil seal work continuously - 10 ℃ ~ + 80 ℃ temperature range.

3. Should= > Consider when pressure = "high pressure oil seal compression deformation, repellent extrusion ring, groove processing aspect also have special requirements. For get together ammoniac fat sealing the best working pressure in the range of 2.5 ~ 31.5 MPa.

4. Load=>Oil cylinder can bear larger load, seal and bearing ring in a completely different role, suggest polyurethane sealing ring to ensure that the cylinder can bear larger load



Appliion Range : Main pump of excavator or other construction Machines

4 ....Oil seal type:

BABSL,BAU3X2,B1FG ,B2U3,BAFG,B1FUD2SL,BAUM3SLX7,B2FUD BAUMX7,BAU3SL.

TC, TB, SC, SB, TB5SY, VC, VB,VK ,TA, SA ,SAY,SCNY2,SCOT,SCOTPLUS

TCV, TCN, TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3,

TC4, TB4, DC, DB,DCY, HSCL,HTC ,HTC9L,HTGL,KC, VR, MG, C N B, SCJY, SCY, VK



Brand	Part number	Type	Material	Color	d	D	t
CFW	2966	BABSL	NBR	Blue	22.0	32.0	6.00
CFW	418603	BABSL	FPM	Blue	22.0	32.0	6.00
CFW	12011518	BABSL	NBR	Blue	22.0	32.0	7.00
CFW	2968	BABSL	NBR	Blue	22.0	35.0	6.00
CFW	348896	BABSL	FPM	Blue	22.0	35.0	6.00
CFW	432530	BABSL	NBR	Blue	24.0	40.0	7.00
CFW	2990	BABSL	NBR	Blue	25.0	35.0	6.00
CFW	342369	BABSL	FPM	Blue	25.0	35.0	6.00
CFW	451831	BABSL	NBR	Blue	25.0	35.0	6.00
CFW	329955	BABSL	NBR	Blue	25.0	36.0	6.00
CFW	502	BABSL	NBR	Blue	25.0	37.0	6.00
CFW	520074	BABSL	FPM	Blue	25.0	37.0	6.00
CFW	12011123	BABSL	NBR	Blue	25.0	40.0	7.00
CFW	307424	BABSL	NBR	Blue	25.0	40.0	7.00
CFW	432536	BABSL	NBR	Blue	25.0	42.0	6.00
CFW	2991	BABSL	NBR	Blue	25.0	47.0	6.00
CFW	418622	BABSL	FPM	Blue	25.0	47.0	6.00
CFW	426478	BABSL	FPM	Blue	26.0	40.0	6.00
CFW	338223	BABSL	NBR	Blue	28.0	40.0	6.00
CFW	339414	BABSL	FKM	Blue	28.0	40.0	6.00

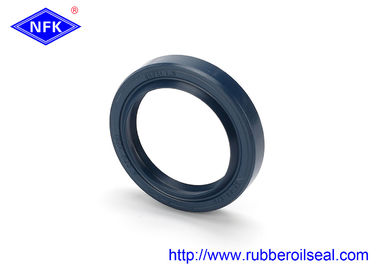

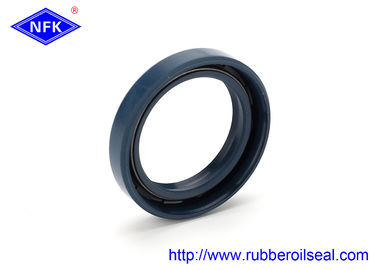

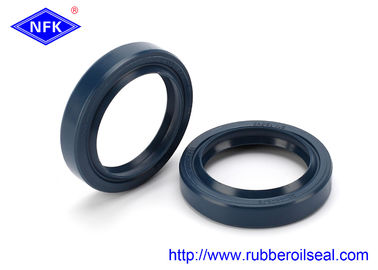

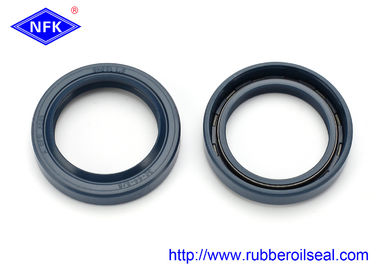

5 ....Picture viewing




6 ....Our advantage



7 ....FAQ

Q1: Why choose our products:
1. We can provide you a wide range of oil seals.
2. Alibaba Assessed 8 year gold supplier.
3. Our oil seals has best quality and best service with competitive price.

Q2: How long is your delivery time?
A: Generally it takes 1-2 days if we have stock.

Q3: How to guarantee your after sales service?
1. Recheck the products before shipment to ensure our packaging in good condition
2. Track and receive feedback from our customer

Q4: Could you supply solutions to us?
A: Sure we can.

Q5: Do you have a minimum order requirement?
A: Small trial order is acceptable.

Q6: What are your payment terms ?
A: T/T, Western Union, .

Q7:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so on.

If you are looking for a company to help you building your own brand of seals , seal kits , o-ring kits , or any other OEM services for other products . You have found the right one . Our company provides professional OEM services on seals seal kits , o-ring kits and other products . For details ,
please contact us . We will reply you as soon as possible .
