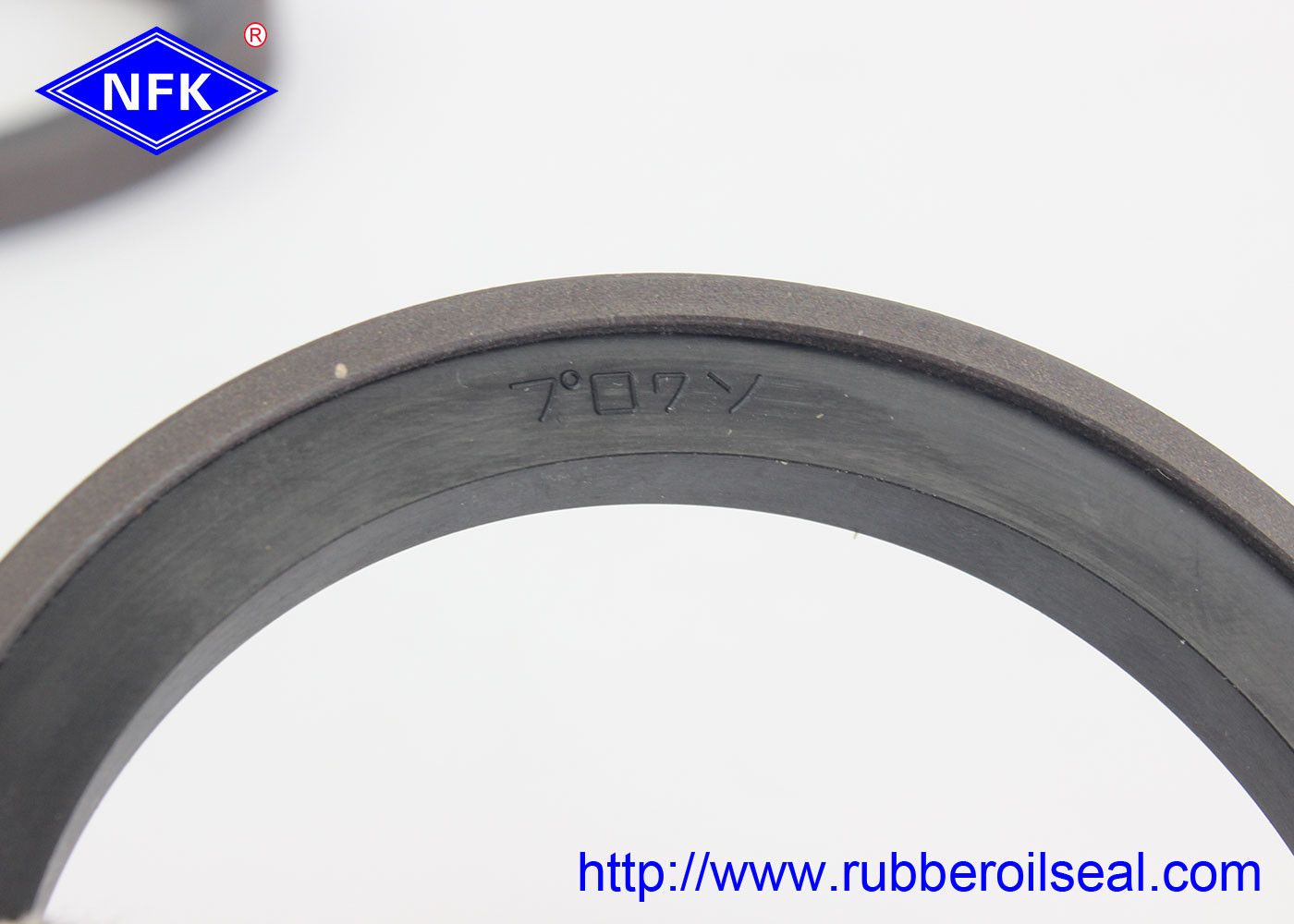

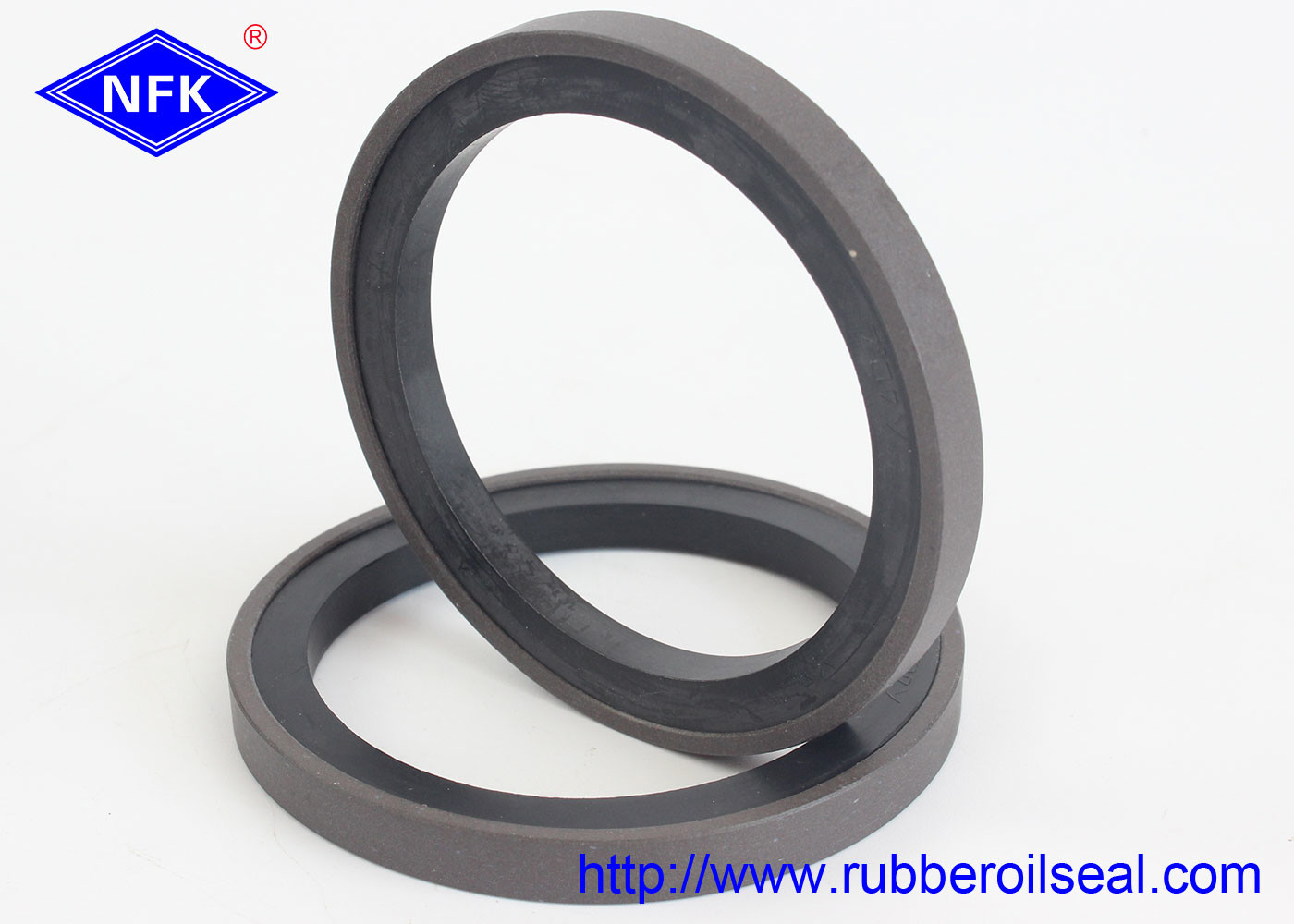

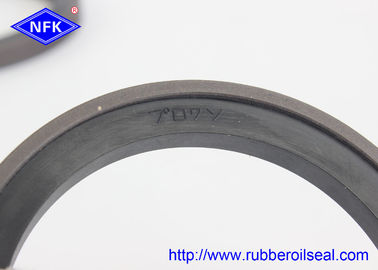

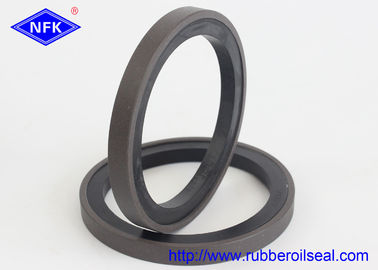

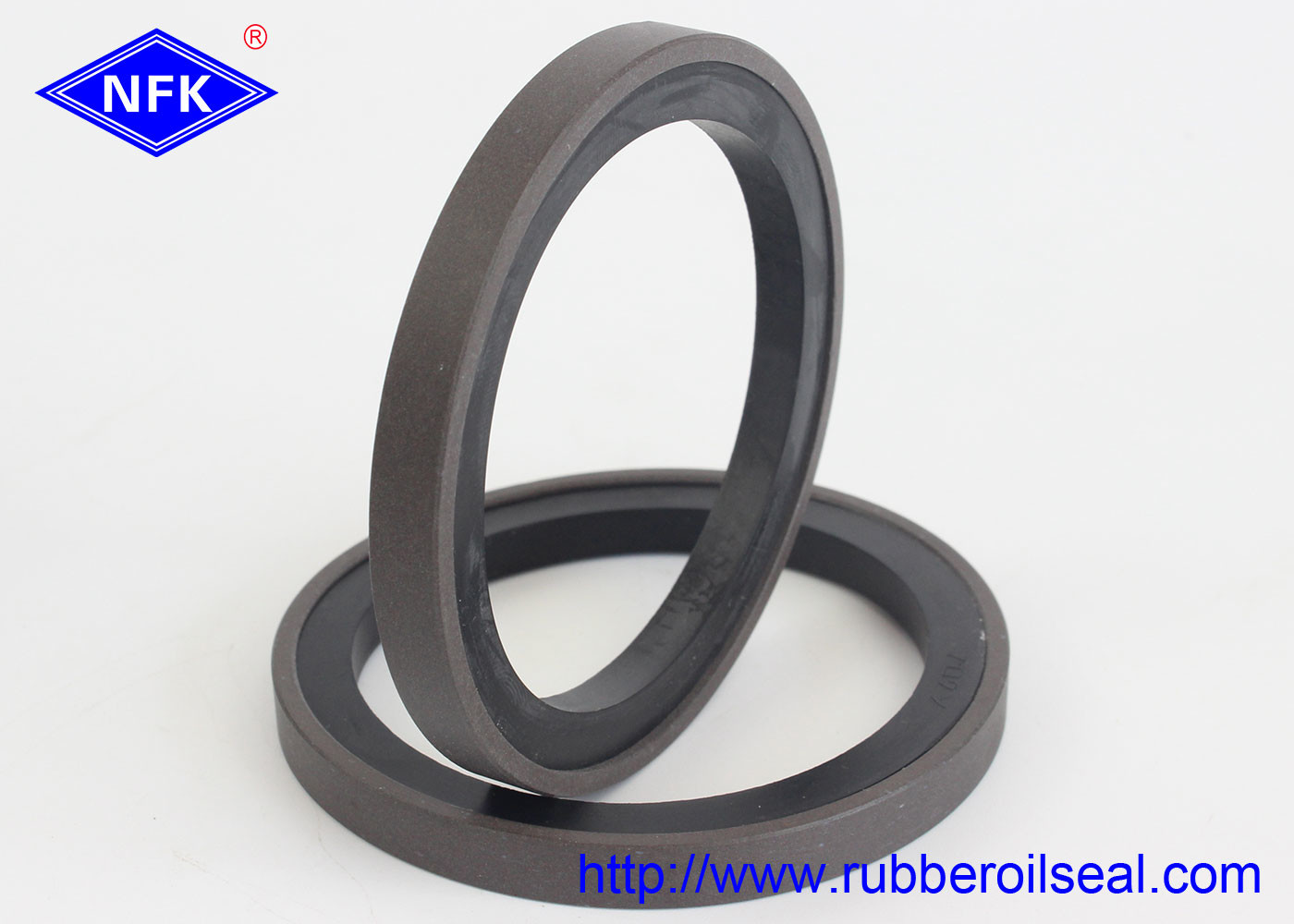

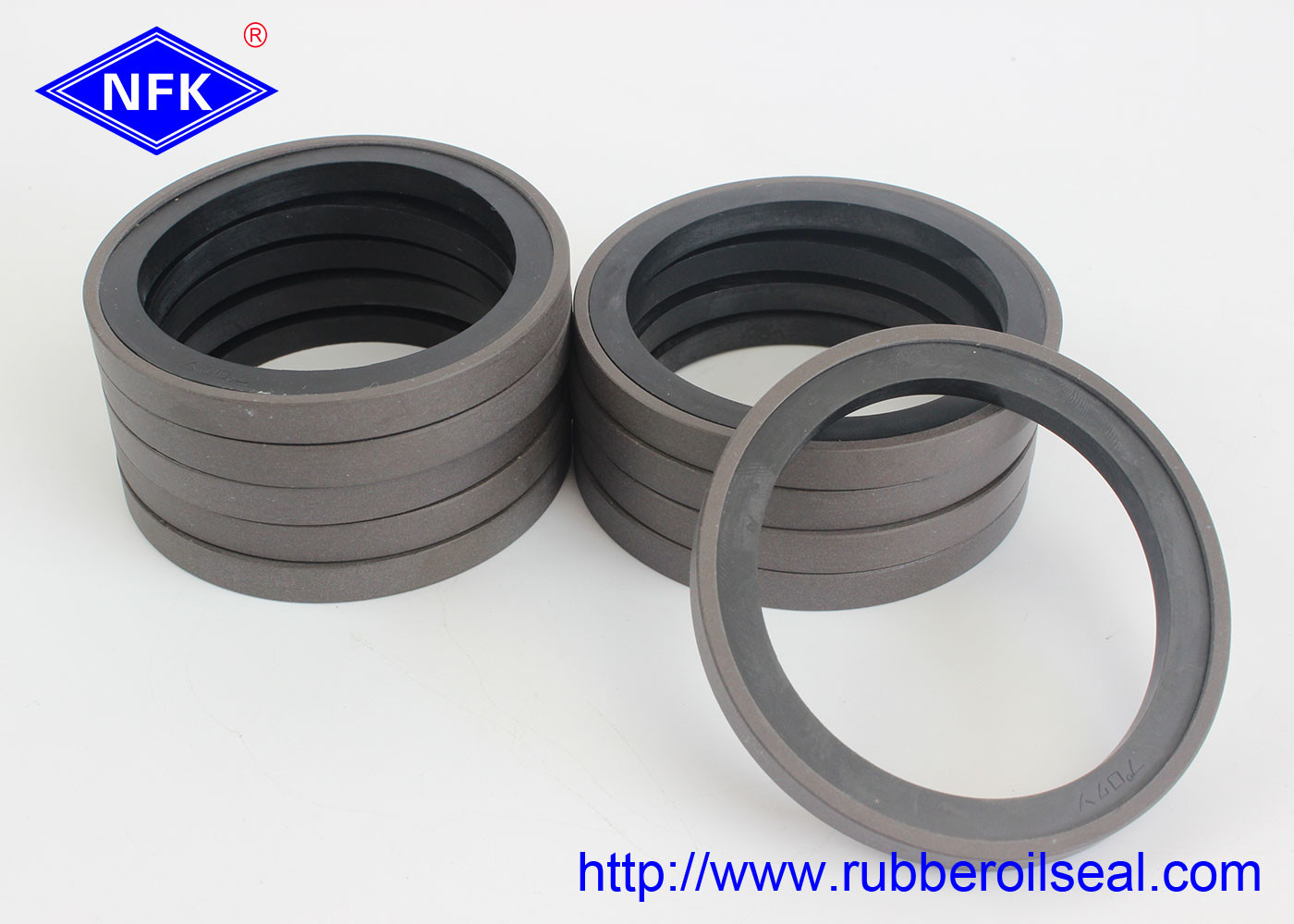

PTFE PU EPDM Rubber Oil Seal SPG 60 765 7075 Double Acting

High hardness  High pressure anti-wear sleeve 5 combined combination DAS seal for hydraulic cylinder piston seals double acting

    1.  Product details


Part NO:  SPG 74.5.  6.6 FIMKER

Material: Profile seal: NBR

Back-up Ring: Polyester elastomer

Pressure / Speed : 30(MPa) /0.5m/s

Temperature: NBR -30℃~+110℃; FKM :-20℃~ 200 ℃

Nature: High Efficiency, High Temperature Resistance, Sealing Performance, Resistance to aging, Pressure Resistance

Speed: Maximum reciproing speed


Media: Combined seal for high pressure hydraulic pressure for shaft

Flame retardant hydraulic fluids

Place of Origin:china
Main sales area :Africa, South America, Southeast Asia, North America, Northeast Asia, Middle East


2...Installation Help

....Combined live rod seal
Installation assistance provided by Guangzhou UP.SEALING sealing technology company:
Combined seals are usually composed of two parts: a ring and a PTFE slip ring. These two components can be installed in only three steps. The installation tools you need are flexible bushings, positioning cones, calibration tools, auxiliary pressure plates and ring introduction tools (only for ring)
---------------------------------------------------------------------
You will avoid wrong base installation.
You will avoid damaging the seal during installation
You will increase the life of the seal
So as to save your time and expense Step

-----------------------------------------------------------------------
... Install the ring

Fix the cavity on the auxiliary pressure plate ,For piston rod seals, different sealing materials require different installation tools.Place the tapered village set on the cavity
Press the ring into the elastic rubber guide tool
1. Elastic rubber piston rod seal
Insert the ring into the groove and squeeze it out of the rubber guide tool,A folder is the all-round assistant during the installation process. They will help you install large or small seals quickly and safely in the enclosed cavity, so you will not delay your work later.Use the guide tool to press the remaining part of the ring into the groove
The following is what you need.

.... Install PTFE slip ring

Fix the cavity on the auxiliary pressure plate Open the clamp handle to the full width and pick up the seal with three jaws (make sure you are installing the seal in the correct way),Place the positioning cone on the cavity.Close the clamp handle as far as possible. The seal will become kidney-shaped. Put the seal in the groove correctly.Remove the protective sleeve from the expandable sleeve, then put the PTFE slip ring on the expandable sleeve and insert it into the groove
Smoothly push the expandable shaft sleeve into the positioning cone sleeve
Let go of the handle and remove the clamp. Usually the seal will snap into place by itself in the groove. If necessary, you can move the seal into place with your fingers.Pull the adjustable shaft sleeve out of the positioning cone sleeve,Remove the cavity from t





3...Packaging & Delivery


Packaging Details : The original factory packaging

Dellvery Time :

4....Our inventory series products includes of brand oil seal :


Piston seal: KDAS TDE TPM TPL PDE PDP TTU TTD TTE TRU SPGW SPGO SPG SPGA SPF NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8


Wiper seal: DKB DKBI DKBI3 DKBZ DKI, DWI DKH DWIR DSI LBI LBH VAY DH ME-2,ME-8


Wear ring: WR KZT RYT


Rod Seal: TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6


U-seal: UPI UPH USH USI V99F V96H UN


Buffer seal: HBTS HBY HBTTS D-14


5.  Picture viewing

If there is any need ,please feel free to write to ask ,We will send our picture book for you if you are interested in our alogues. Thanks!


6.  FAQ

Q1: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.

A. In order to give you fast and accurate pricing information, we need some details about the machine

Q3: How long is your delivery time?

A: Generally it takes 1-2 days if we have stock.

Q4: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.

A. In order to give you fast and accurate pricing information, we need some details about the machine engine/appliion and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
