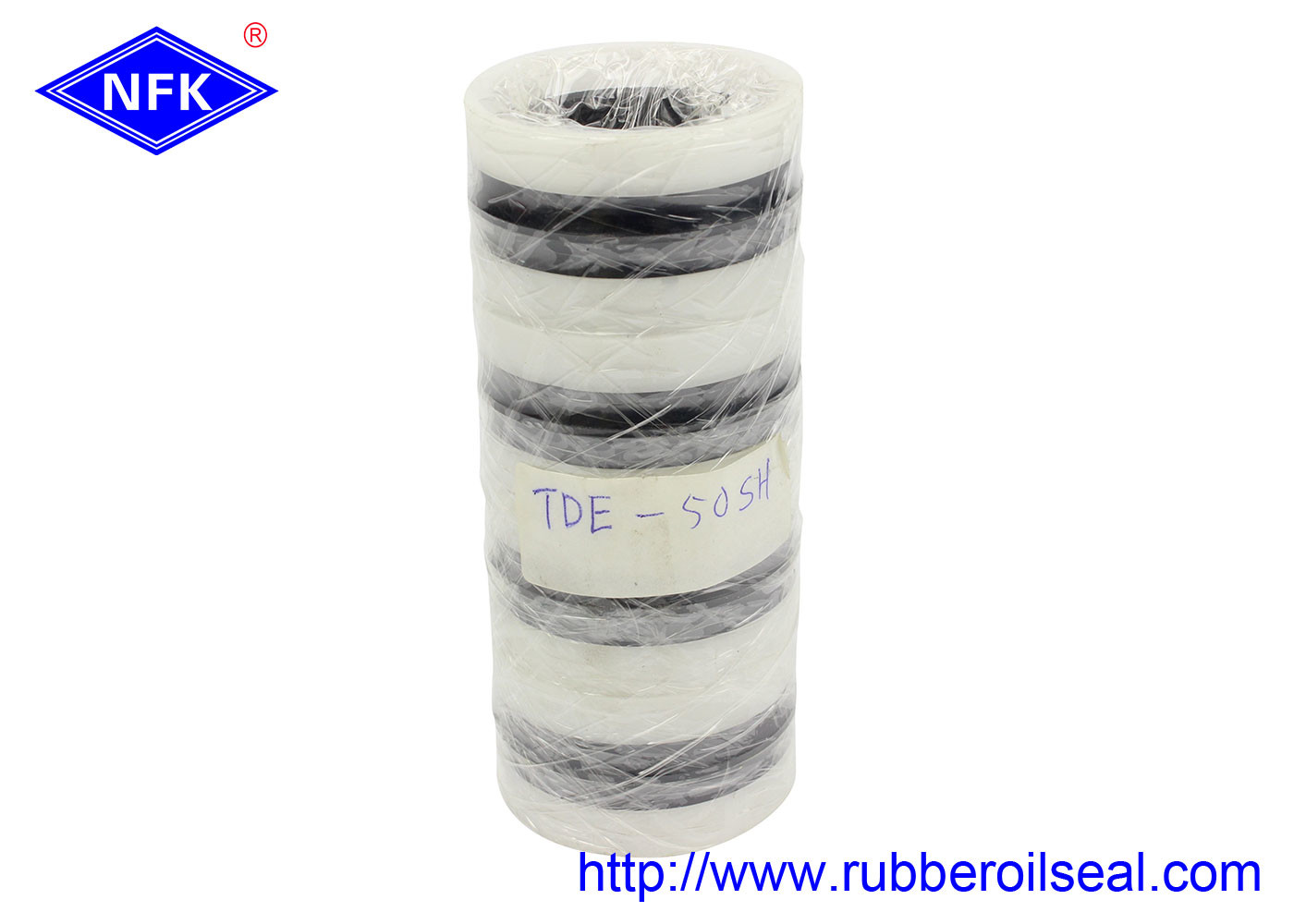

Standard 196118 196133 Tecnotex rubberseals TDE 50 Hydraulic Piston Seals
| Place of Origin | Italy |
|---|---|
| Brand Name | TECNOLAN |
| Model Number | 196118 ,196133 TDE 50*30*25.4，TDE 50*34*18.4 |
| Minimum Order Quantity | 5 |
| Price | Negotiations |
| Packaging Details | The original factory packaging |
| Delivery Time | 1-2 workdays,Big order for 10-15 Days After Payment |
| Payment Terms | TT, Western Union, Cash, Bank, PayPal.HSBC,CITY BANK. |
| Supply Ability | 6000 PCS / MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type&Size | Combination Seal TDE 50*30*25.4，TDE 50*34*18.4 | Style | PDE PDP PDH TDE TGU TPL TPM TPS TTD TTE TRU TTQ TTR TTU TUT |
|---|---|---|---|
| Properties | High Pressure Resistance, Wear Resistance | Scope Of Appliion | Piston, Cylinder |
| Standard Or Nonstandard | Standard | Nature | Wear Resistance, High Pressure Resistance |
| Temperature (°C) | NBR -30℃~+110℃; FKM :-20℃~+200℃ | Machine Model | Ship, Excavator, Pump Hydraulic Machine Rotary Shaft, Rotary Drilling Rig, Hydraulic Loader |
| Pressure / Speed | 50(MPa) /0.5m/s | Sample | Openly Window Shop, Can Provide Sample (payable) |
| Main Sales Area | Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East | Way By Deliv | Shipping By Sea,air Express,DHL ,EMS, FADEX,TNT. |
| High Light | TDE50 Hydraulic Piston Seals,196133 Hydraulic Piston Seals,TGU hydraulic piston rings |
||
Product Description
High pressure combination seal 196118 ,196133 TDE50 piston seals for hydraulic cylinders tecnotex rubberseals
1. Operating conditions
Pressure / Speed : 50(MPa) /0.5m/s
Temperature: NBR -30℃~+110℃; FKM :-20℃~ 200 ℃
Nature: Wear resistance, high pressure resistance
Speed: Maximum reciproing speed
Types : Combination seal
Media: Mineral oil-based hydraulic fluids,
Flame retardant hydraulic fluids
Main sales area :Africa, South America, Southeast Asia, North America, Northeast Asia, Middle East
2. Material
Material: Profile seal: NBR
Back-up Ring: Polyester elastomer
Guide rings: POM
3....About us
Our Company focus for more than twenty years of construction machinery industry market
In addition to excavators, breakers, and other equipment and machinery repair kits:
Excavator repair kit
Hydraulic breaker repair kit
Rotary hydraulic drill repair kit
Ship hydraulic pump repair kit
Ship motor repair kit
Concrete pump truck repair kit
Crane Seal Repair Kit
Port equipment repair kit
Aerial work machinery repair kit
Bulldozer repair kit
Forklift repair kit .........
4....Our inventory series products includes of brand oil seal :
Pump truck accessories Italy TECNOLAN TDE50 piston combination seal
Product egory
Piston seal: TDE TPM TPL PDE PDP TTU TTD TTE TRU SPGW SPGO SPG SPGA SPF NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8
Rod Seal: TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6
U-seal: UPI UPH USH USI V99F V96H UN
Buffer seal: HBTS HBY HBTTS D-14
Wiper seal: DKB DKBI DKBI3 DKBZ DKI, DWI DKH DWIR DSI LBI LBH VAY DH ME-2,ME-8
Wear ring: WR KZT RYT
Rotating seal: ROI D-14 SPN
Spare ring: N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O-ring: Oring kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9 series M 2.4 series
M 3.0 series M4.0
Common pressure oil seals: SC, SB, TC, TB, VC, VB, DCY, TC4Y, TC4, TB4, DC, DB, VR, MG, OKC3,HSCL,HTC ,HTC9L,HTGL,KC
High pressure oil seal: TCV, TCN TCZ ,TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3...
5. TDE SIZE SERIES TABLE
| NS RIF. | ALTRI RIF. | DIMENSIONI SEDI / HOUSING DIMENSIONS | ||
| Our ref. | Other references | D | d | H |
| TDE 1000 | 098047 | 25.00 | 12.00 | 12.40 |
| TDE 1001 | 118066 | 30.00 | 17.00 | 15.40 |
| TDE 1002 | 137086 | 35.00 | 22.00 | 15.40 |
| TDE 1003 | 157094 | 40.00 | 24.00 | 18.40 |
| TDE 1004 | 177114 | 45.00 | 29.00 | 18.40 |
| TDE 1004/1 | 196118 196133 | 50.00 | 30.00 | 25.40 |
| TDE 1005 | 196133 | 50.00 | 34.00 | 18.40 |
| TDE 1006 | 216153 | 55.00 | 39.00 | 18.40 |
| TDE 1007 | 236173/1 | 60.00 | 44.00 | 18.50 |
| TDE 1007/1 | 236173/2 | 60.00 | 44.00 | 20.00 |
| TDE 1008 | 248185 | 63.00 | 47.00 | 19.40 |
| TDE 1009 | 255196 | 65.00 | 50.00 | 18.40 |
| TDE 1010 | 275196 | 70.00 | 50.00 | 22.40 |
| TDE 1011 | 295216 | 75.00 | 55.00 | 22.40 |
| TDE 1012 | 295220 | 75.00 | 56.00 | 24.40 |
| TDE 1012/1 | 300225 | 76.20 | 57.15 | 22.40 |
| TDE 1013 | 314236 | 80.00 | 60.00 | 22.40 |
| TDE 1014 | 326248 | 83.00 | 63.00 | 22.40 |
| TDE 1015 | 334255 | 85.00 | 65.00 | 22.40 |
| TDE 1016 | 354275 | 90.00 | 70.00 | 22.40 |
| TDE 1016/1 | 354275/1 | 90.00 | 70.00 | 25.40 |
| TDE 1017 | 374295 | 95.00 | 75.00 | 22.40 |
| TDE 1018 | 393295 | 100.00 | 75.00 | 22.40 |
| TDE 1019 | 393314 | 100.00 | 80.00 | 25.40 |
| TDE 1019/1 | 400325 | 101.60 | 82.55 | 24.21 |
| TDE 1020 | 413314 | 105.00 | 80.00 | 22.40 |
| TDE 1021 | 433334/1 | 110.00 | 85.00 | 22.40 |
| TDE 1022 | 433334 | 110.00 | 85.00 | 25.40 |
| TDE 1023 | 433354 | 110.00 | 90.00 | 25.40 |
| TDE 1023/1 | 450350 | 114.30 | 88.90 | 32.15 |
| TDE 1024 | 452354 | 115.00 | 90.00 | 22.40 |
| TDE 1025 | 472374 | 120.00 | 95.00 | 22.40 |
| TDE 1026 | 472393 | 120.00 | 100.00 | 25.40 |
| TDE 1027 | 492393 | 125.00 | 100.00 | 25.40 |
| TDE 1028 | 492393/1 | 125.00 | 100.00 | 32.40 |
| TDE 1029 | 492413 | 125.00 | 105.00 | 25.40 |
| TDE 1029/1 | 500400 | 127.00 | 101.60 | 32.15 |
| TDE 1030 | 511413 | 130.00 | 105.00 | 25.40 |
| TDE 1031 | 531433 | 135.00 | 110.00 | 25.40 |
| TDE 1032 | 551452 | 140.00 | 115.00 | 25.40 |
| TDE 1033 | 551472 | 140.00 | 120.00 | 25.40 |
| TDE 1034 | 570472 | 145.00 | 120.00 | 25.40 |
| TDE 1035 | 590472 | 150.00 | 120.00 | 38.40 |
| TDE 1036 | 590492 | 150.00 | 125.00 | 25.40 |
| TDE 1037 | 610511 | 155.00 | 130.00 | 25.40 |
| TDE 1038 | 629511 | 160.00 | 130.00 | 25.40 |
| TDE 1038/1 | 638511 | 162.00 | 130.00 | 25.40 |
| TDE 1039 | 669551 | 170.00 | 140.00 | 25.40 |
| TDE 1039/1 | 700600 | 177.80 | 152.40 | 32.15 |
| TDE 1040 | 708629 | 180.00 | 160.00 | 31.40 |
| TDE 1041 | 708590 | 180.00 | 150.00 | 35.40 |
| TDE 1042 | 748629 | 190.00 | 160.00 | 35.40 |
| TDE 1043 | 787669 | 200.00 | 170.00 | 35.40 |
| TDE 1044 | 826708 | 210.00 | 180.00 | 32.40 |
| TDE 1045 | 866748 | 220.00 | 190.00 | 35.40 |
| TDE 1046 | 984866 | 250.00 | 220.00 | 35.40 |
6. Picture viewing
Can you call us to discuss your questions when you have time? Please call 86 13924029131 whatsapp(wechat ).
We believe you will find some oilseals & repair kits in our product . We are confident that our products can meet your needs in various ways.
Please let us know if you want to deal with Solve the problem of seals further. look forward to hearing from you.
7. FAQ
Q1: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we need some details about the machine
Q2:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so on.
Q3: How long is your delivery time?
A: Generally it takes 5-7 days if we have stock.
Q4: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/appliion and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
Q5: How to guarantee your after sales service?
1. Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in good condition
3. Track and receive feedback from our customer
Q6: Could you supply solutions to us?
A: Sure we can.
Q6: Do you have a minimum order requirement?
A: Small trial order is acceptable.
If there is any need ,please feel free to write to ask ,We will send our picture book for you if you are interested in our alogues. Thanks!A: Sure we can.
Q6: Do you have a minimum order requirement?
A: Small trial order is acceptable.
