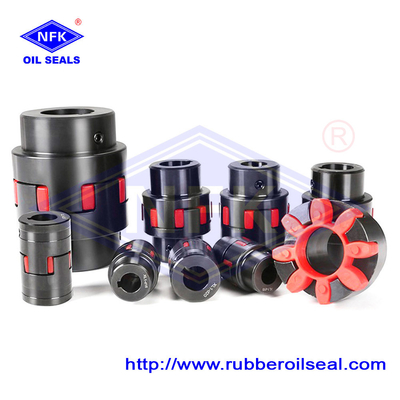

Pu Rubber Flexible Elastic Spiders Coupling Plum Shaft Couplings For Jaw Bush Shaft Coupler

Shaft Coupling Pu Rubber Flexible Elastic Spiders Coupling Plum Shaft Couplings for Jaw Bush Shaft Coupler

1. Shaft Coupling :

	Model	MT1	MT2	MT3	MT4	MT5	MT6	MT7	MT8	MT9	MT10	MT11	MT12	MT13
	Number Of Petals	4	6	6	6	6	6	8	8	10	10	10	12	12
	Material	Polyurethane (TPU) hardness 90+2A

	Model	GR10	GR14	GR19	GR24	GR28	GR38	GR42	GR48	GR55	GR65	GR75	GR75A	GR90
	Number Of Petals	4	4	6	8	8	8	8	8	8	8	10	8	10
	Material	Polyurethane (TPU) hardness 98+2A

	Model	GR90A	GR100	GR110	GR125	GR140	GR160	GR180
	Number Of Petals	8	10	10	10	10	10	10
	Material	Polyurethane (TPU) hardness 98+2A

	Model	CC45	CC55	CC65	CC80	CC90	CC115	CC130	CC145	CC175	CC200
	Number Of Petals	6	6	8	8	8	8	8	8	8	8
	Material	Polyurethane (TPU) hardness 90+2A

	Model	GS9	GS14	GS19	GS24	GS28	GS38	GS42	GS48	GS55	GS65	GS75
	Number Of Petals	4	4	6	8	8	8	8	8	8	8	10
	Material	Polyurethane (TPU) hardness 90+2A

16H,25H, 30H, 35H, 40H, 45H, 50H, 90H, 110H, 140H, 160H, 240H

4A, 4AS, 8A, 8AS, 16A, 16AS, 22A, 22AS, 25A, 25AS, 28A, 28AS, 30A, 30AS, 50A,50AC, 50AS, 90A, 90AS, 140A, 140AS

2.  Product Overview

Product name: Rubber coupling
This product is a coupling used in excavators and air compressors. It is mainly made of rubber material and has good elasticity and wear resistance. Its unique star-shaped design can effectively transmit torque, reduce vibration, and improve the stability and service life of the equipment.

3.  Product features

1. High elasticity: Made of high-quality rubber material, it has good elasticity and can maintain stable working performance under various working conditions.
2. Strong wear resistance: Rubber material has good wear resistance and can maintain good performance during long-term use.
3. Star-shaped design: The unique star-shaped design can effectively transmit torque, reduce vibration, and improve the stability and service life of the equipment.
4. Easy to install: The coupling has a simple structure and is easy to install. It can be installed without professionals.

4.  How to use

1. When installing the coupling, make sure that both ends of the coupling are aligned with the connection parts of the equipment.
2. Use the appropriate tools to install the coupling to the equipment and tighten it using a wrench or torque wrench.
3. During use, the tightening of the coupling should be checked regularly. If it is loose, tighten it in time.

5.  Precautions

1. When installing and using the coupling, avoid exerting excessive impact force on it to prevent damage to the coupling.
2. When disassembling the coupling, loosen the fastening bolts first, and then slowly remove the coupling from the equipment to prevent damage to the coupling.
3. When storing the coupling, it should be placed in a dry and ventilated place to avoid direct sunlight and rain.

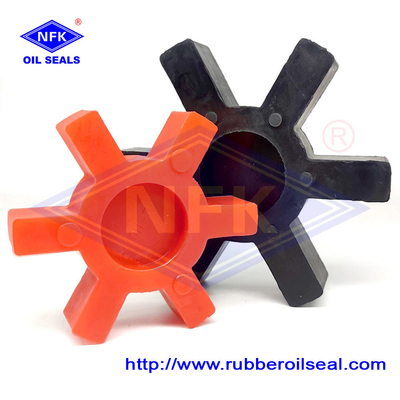

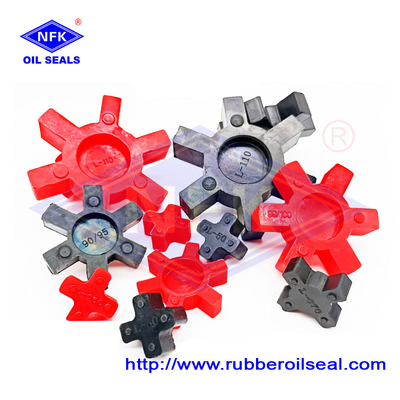

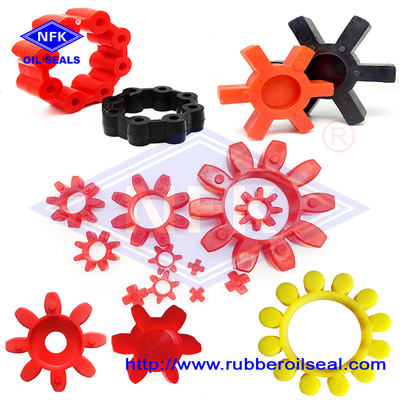

6.  Features of Hydraulic Rubber Coupling Spider

A. The transmission is made of high elastic rubber, which can absorb vibration and shock very well and reduce noise.


B. The axial direction is short, saving space, Pressure flexibility.


C. Using heat-resistant rubber, and there is pre-pressure, Highly Adaptable and Durable,long life,Affordability


D. It is easy to install and center, and when the screw is removed, the power is completely disengaged,and Simple Maintenance.

We are in line with the tenet of "the best of the company, the first", to serve the customers, and win the confidence of the reputation of the industry and the satisfaction of the customers.

9.  LOGISTICS & TRANSPORTATION

Packaging Details

Kraft cartons colour cartons and Exquisite packaging paper box

Standard carton packing for individual parts, or as customized packing.

Delivery Time

1-2 days for stocks, 7-15 days for futures
