Rubber Oil Seal Piston Combination Seal TPS 354299 393338 433377 472417 492425 TECNOTEX
| Place of Origin | Italy |
|---|---|
| Brand Name | TECNOLAN TECNOTEX Guarnitec |
| Model Number | PDE PDP PDH TDE TGU TPL TPM TPS TTD TTE TRU TTQ TTR TTU TUT |
| Minimum Order Quantity | 5 |
| Price | Negotiations |
| Packaging Details | The original factory packaging |
| Delivery Time | 1-2 workdays,Big order for 10-15 Days After Payment |
| Payment Terms | TT, Western Union, Cash, Bank, PayPal.HSBC,CITY BANK. |
| Supply Ability | 6000 PCS / MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Produc Name | Combination Seal ,Hydraulic Seal ，High Pressure Oil SealsTECNOLAN TECNOTEX Guarnitec | Style | PDE PDP PDH TDE TGU TPL TPM TPS TTD TTE TRU TTQ TTR TTU TUT |
|---|---|---|---|
| Properties | High Pressure Resistance, Wear Resistance | Scope Of Appliion | Piston Cylinder, Hydraulic Cylinder，Hydraulic Rubber Seals |
| Produc Features | Easy To Install, High Wear Resistance ,High Compression Resistance, Low Deformation | Temperature (°C) | NBR -30℃~+110℃; FKM :-20℃~+200℃ |
| Machine Model | Ship, Excavator, Pump Hydraulic Machine Rotary Shaft, Rotary Drilling Rig, Hydraulic Loader | Pressure / Speed | 40(MPa) /0.5m/s |
| Sample | Openly Window Shop, Can Provide Sample (payable) | Main Sales Area | Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East |
| High Light | 40MPa Piston Combination Seal,Rubber oil seal Wear Resistance |
||
Product Description
Rubberoilseal Piston Combination Seal TPS 354299 393338 433377 472417 492425 TECNOLAN TECNOTEX GUARNITEC
1. Operating conditions
Pressure / Speed : 40 (MPa) /0.5m/s
Temperature: NBR -30℃~+110℃; FKM :-20℃~ 200 ℃
Produc Features: **Easy to install **High wear resistance **High compression resistance **Low deformation
Speed: Maximum reciproing speed
Types : Combination seal ,Rubber oil seal,Hydraulic Seal
Media: Mineral oil-based hydraulic fluids,
Flame retardant hydraulic fluids
Main sales area :Africa, South America, Southeast Asia, North America, Northeast Asia, Middle East
2. Material
Material: Profile seal: NBR
Back-up Ring: Polyester elastomer
Guide rings: POM
3....About us
Our company specializes in sale of seal repair kits for high-altitude mechanical equipment cranes, forklifts, stackers, cranes, forklifts, container cranes, quay crane equipment and other port machinery and equipment ;The seals use the original brand: American PARKER, Germany CFW (MERKEL, SIMRIT ), British HALLITE, American MPI, Italian TECNOLAN.
Seal repair kits include: lift cylinder repair kit, telescopic oil cylinder repair kit, luffing oil cylinder repair kit, side shift oil cylinder repair kit, twist lock oil cylinder repair kit, etc.
The existing original factory seals can meet most of the current port machinery, ship terminal machinery, mining machinery, municipal machinery and other equipment
Kalmar (Sweden Kalmar), Fantuzzi (Italy Qantas), CVS (Italy Ferrari), PPM (France), Sisu (Finland), etc.
Forklift brands are: TCM, LINDE (Linde), HYSTER (Hyster), MITSUBISH (Mitsubishi), KONECRANES (Konecranes SMV), etc.
4....Our inventory series products includes of brand oil seal :
Pump truck accessories Italy TECNOLAN TDE50 piston combination seal
Product egory
Piston seal: TDE TPM TPL TPS TPG PDE PDP TTU TTD TTE TRU SPGW SPGO SPG SPGA SPF NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8
Rod Seal: TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6
U-seal: UPI UPH USH USI V99F V96H UN
Buffer seal: HBTS HBY HBTTS D-14
Wiper seal: DKB DKBI DKBI3 DKBZ DKI, DWI DKH DWIR DSI LBI LBH VAY DH ME-2,ME-8
Wear ring: WR KZT RYT
Rotating seal: ROI D-14 SPN
Spare ring: N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O-ring: Oring kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9 series M 2.4 series
M 3.0 series M4.0
Common pressure oil seals: SC, SB, TC, TB, VC, VB, DCY, TC4Y, TC4, TB4, DC, DB, VR, MG, OKC3,HSCL,HTC ,HTC9L,HTGL,KC
High pressure oil seal: TCV, TCN TCZ ,TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3...
5. TPS SIZE SERIES TABLE
| NS RIF. | ALTRI RIF. | DIMENSIONI SEDI / Housing dimensions | ||||||
| Our ref. | Other ref. | D | d | H | S | h | M | F |
| TPS 9501 | 098066 | 25.00 | 17.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9501/1 | 098055 | 25.00 | 14.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9502 | 118086 | 30.00 | 22.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9502/1 | 118075 | 30.00 | 19.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9503 | 125094 | 32.00 | 24.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9503/1 | 125083 | 32.00 | 21.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9504 | 137106 | 35.00 | 27.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9504/1 | 137094 | 35.00 | 24.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9505 | 157125 | 40.00 | 32.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9505/1 | 157114 | 40.00 | 29.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9506 | 177145 | 45.00 | 37.00 | 15.50 | 3.20 | 6.00 | 41.00 | 44.40 |
| TPS 9507 | 196149 | 50.00 | 38.00 | 20.50 | 4.20 | 6.00 | 46.00 | 49.40 |
| TPS 9507/1 | 216175 | 55.00 | 43.00 | 20.50 | 4.20 | 6.00 | 51.00 | 54.90 |
| TPS 9508 | 236188 | 60.00 | 48.00 | 20.50 | 4.20 | 6.00 | 56.00 | 59.40 |
| TPS 9509 | 248200 | 63.00 | 51.00 | 20.50 | 4.20 | 6.00 | 59.00 | 62.40 |
| TPS 9509/1 | 255208 | 65.00 | 53.00 | 20.50 | 4.20 | 6.00 | 61.00 | 64.40 |
| TPS 9510 | 275228 | 70.00 | 58.00 | 20.50 | 4.20 | 6.00 | 66.00 | 69.40 |
| TPS 9510/1 | 295248 | 75.00 | 63.00 | 20.50 | 4.20 | 6.00 | 71.00 | 74.40 |
| TPS 9511 | 314259 | 80.00 | 66.00 | 22.50 | 5.20 | 6.00 | 76.00 | 79.40 |
| TPS 9511/1 | 334279 | 85.00 | 71.00 | 22.50 | 5.20 | 6.00 | 81.00 | 84.40 |
| TPS 9512 | 354299 | 90.00 | 76.00 | 22.50 | 5.20 | 6.00 | 86.00 | 89.40 |
| TPS 9513 | 393338 | 100.00 | 86.00 | 22.50 | 5.20 | 6.00 | 96.00 | 99.40 |
| TPS 9514 | 433377 | 110.00 | 96.00 | 22.50 | 5.20 | 6.00 | 106.00 | 109.40 |
| TPS 9515 | 472417 | 120.00 | 106.00 | 22.50 | 5.20 | 6.00 | 116.00 | 119.40 |
| TPS 9516 | 492425 | 125.00 | 108.00 | 26.50 | 7.20 | 6.00 | 121.00 | 124.40 |
| TPS 9516/1 | 511445 | 130.00 | 113.00 | 26.50 | 7.20 | 6.00 | 126.00 | 129.40 |
| TPS 9516/2 | 531464 | 135.00 | 118.00 | 26.50 | 7.20 | 6.00 | 131.00 | 134.40 |
| TPS 9517 | 551480 | 140.00 | 123.00 | 26.50 | 7.20 | 6.00 | 136.00 | 139.40 |
| TPS 9518 | 590523 | 150.00 | 133.00 | 26.50 | 7.20 | 6.00 | 146.00 | 149.40 |
| TPS 9519 | 629562 | 160.00 | 143.00 | 26.50 | 7.20 | 6.00 | 156.00 | 159.40 |
| TPS 9520 | 708641 | 180.00 | 163.00 | 26.50 | 7.20 | 6.00 | 176.00 | 179.40 |
| TPS 9521 | 787708 | 200.00 | 180.00 | 31.50 | 9.20 | 6.00 | 196.00 | 199.40 |
| TPS 9522 | 866787 | 220.00 | 200.00 | 31.50 | 9.20 | 6.00 | 216.00 | 219.40 |
| TPS 9523 | 984905 | 250.00 | 230.00 | 31.50 | 9.20 | 6.00 | 246.00 | 249.40 |

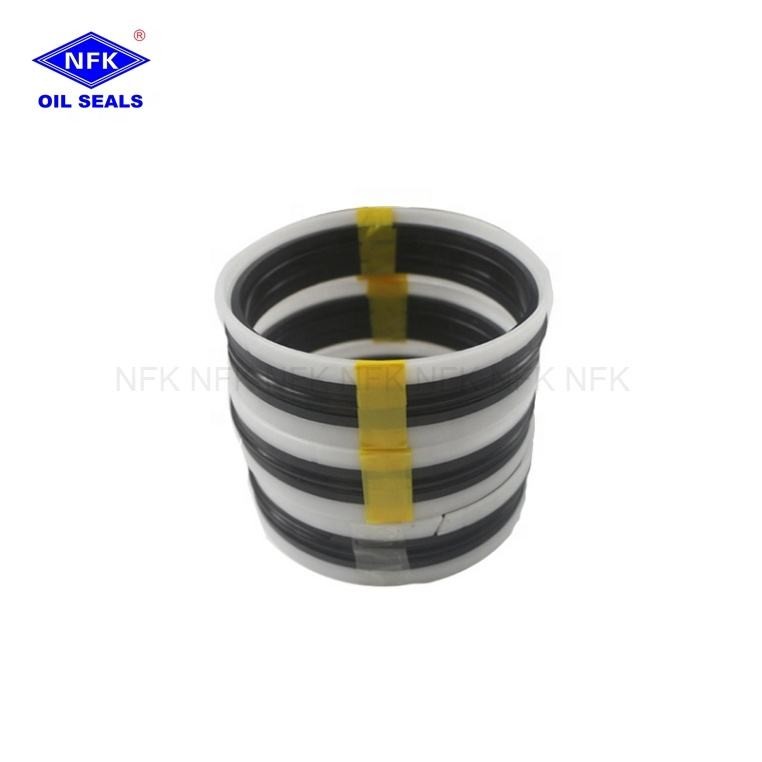

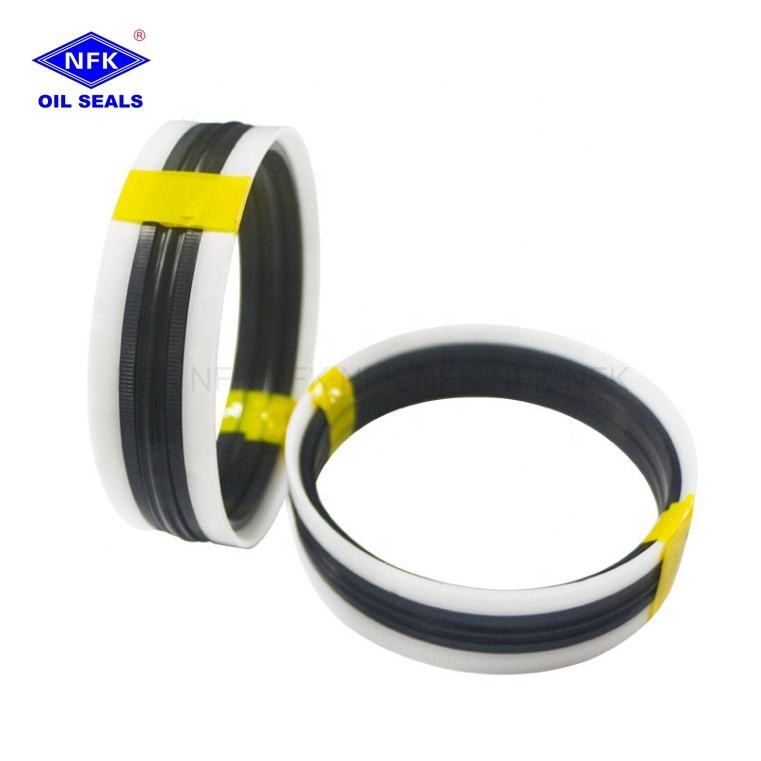

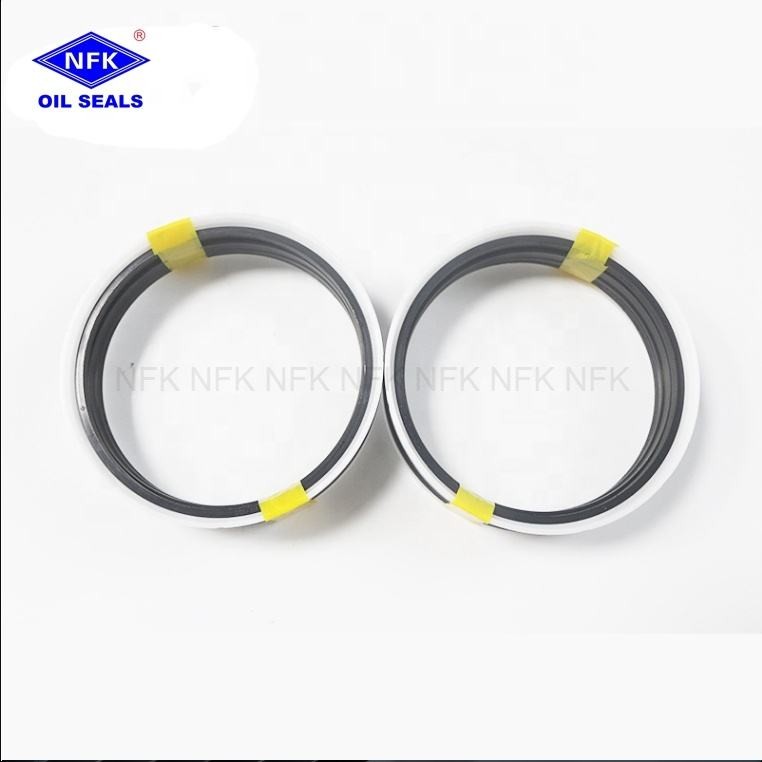

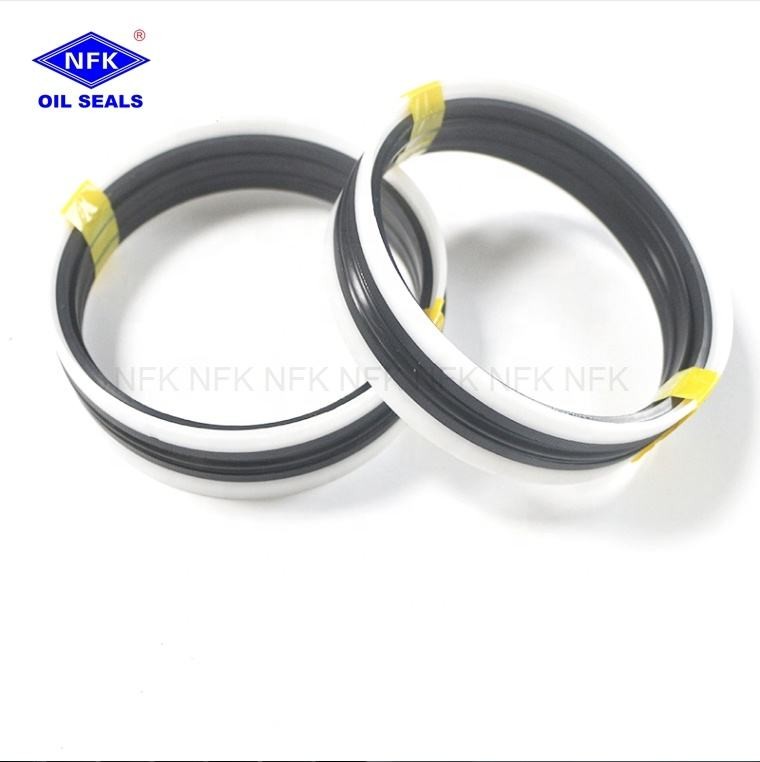

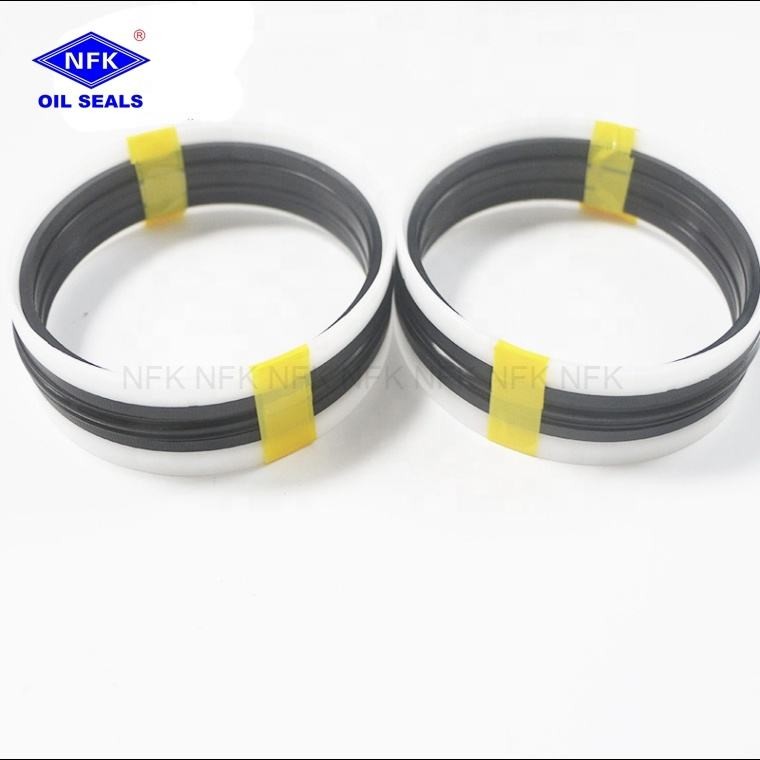

6. Picture viewing
Can you call us to discuss your questions when you have time? Please call 86 13924029131 whatsapp(wechat ).
We believe you will find some oilseals & repair kits in our product . We are confident that our products can meet your needs in various ways.
Please let us know if you want to deal with Solve the problem of seals further. look forward to hearing from you.
7. FAQ
Q1: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we need some details about the machine
Q2:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so on.
Q3: How long is your delivery time?
A: Generally it takes 5-7 days if we have stock.
Q4: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/appliion and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
Q5: How to guarantee your after sales service?
1. Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in good condition
3. Track and receive feedback from our customer
Q6: Could you supply solutions to us?
A: Sure we can.
Q6: Do you have a minimum order requirement?
A: Small trial order is acceptable.
If there is any need ,please feel free to write to ask ,We will send our picture book for you if you are interested in our alogues. Thanks!A: Sure we can.
Q6: Do you have a minimum order requirement?
A: Small trial order is acceptable.
